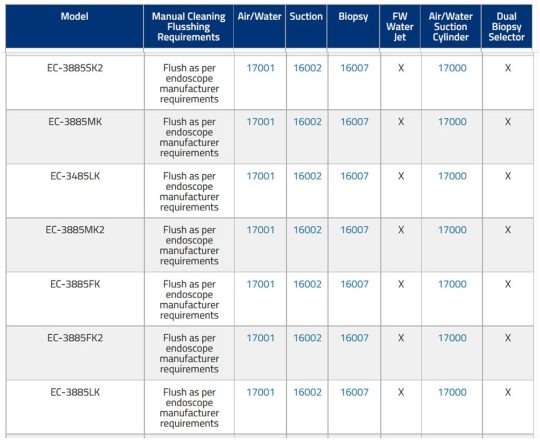

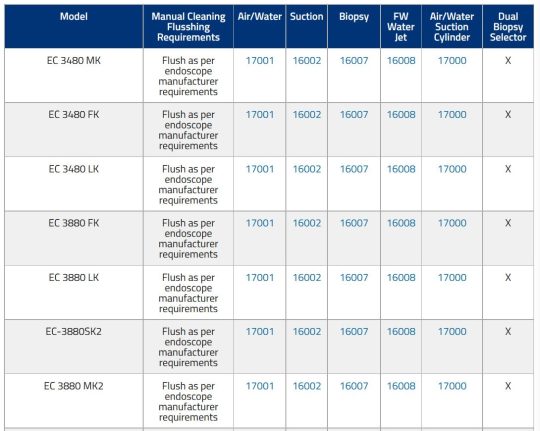

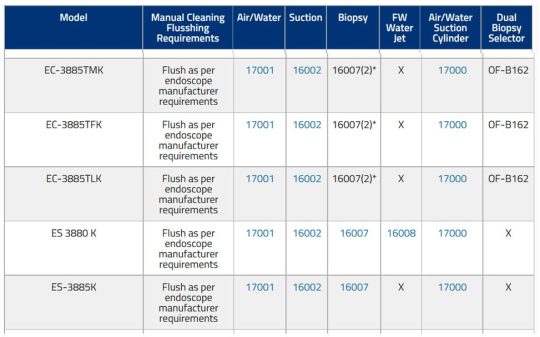

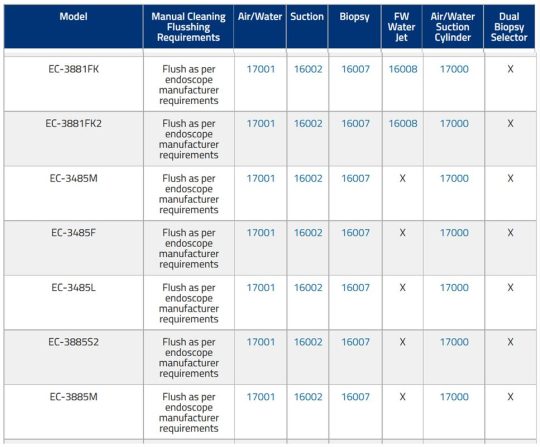

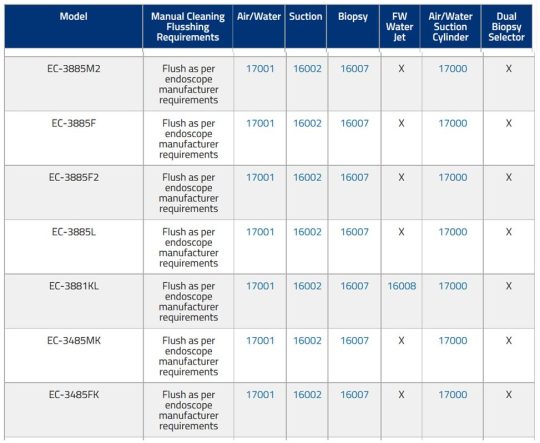

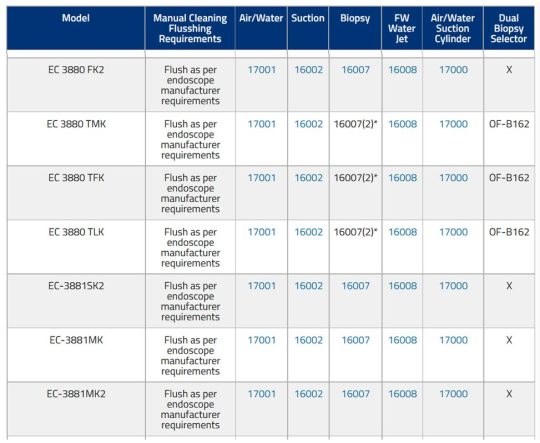

Pentax – 80 Series Video – Colonoscope

16008: for FWJ channel requires CU # 17016 (screw-in adapter) plus Pentax OF-B113 irrigation tube
17001: for simultaneous flushing of Air & Water channels requires Pentax OF-G17 AW adapter
Pentax OF-B153: AWS cylinder adapter can substitute for the 17000
OF-B162: caps off Suction Selector Cycle

A/W = Combined Air & Water channel inlet port which receives Pentax water bottle assembly
Suction = tapered metal suction connector that accepts tube from suction unit; Biopsy = biopsy port/instrument channel inlet
FWJ = Forward Water Jet channel inlet port; AW S Valve Cyl = Air/Water and Suction valve cylinders that house the A/W & S valves
S/Bx Selector = Suction Selector mechanism housed in S Selector cylinderlocated below below Bx ports of 2-chan scopes

X: Not Applicable* = dual channel scope ( ) = adapters available from scope OEM
