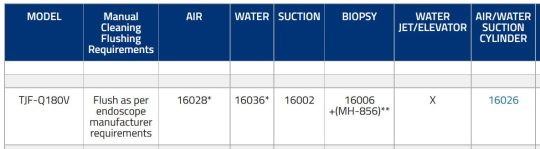

Olympus – Duodenoscopes

16028 + 16036: Includes the in-line disc filter (P/N 16030) that must be replaced as required or every six (6) weeks
MH-856: Olympus OEM Suction Cleaning Adapter. Requires stainless steel clip (P/N 16015) that secures the Olympus Biopsy Channel Adapter (P/N 16006) to the Biopsy Port on the Endoscope

Warning: When alcohol purging an endoscope with an elevator, make sure the forceps elevator is in the half-up half-down position. Follow endoscope manufacturer’s instructions for flushing alcohol into and around the forceps elevator recess at the dist

Caution: Remove all valves, air/water, suction, co2, biopsy caps and selector mechanisms, etc. Consult the appropriate endoscope manual for the proper removal and cleaning procedures of components. Install appropriate reprocessing parts supplied by endoscope manufacturer and/or Wassenburg Medical. To confirm proper channel adaptation refer to endoscope diagrams and instrument adapter list document. For questions regarding endoscope channel adaptation, contact Wassenburg Medical.

X: Not Applicable
