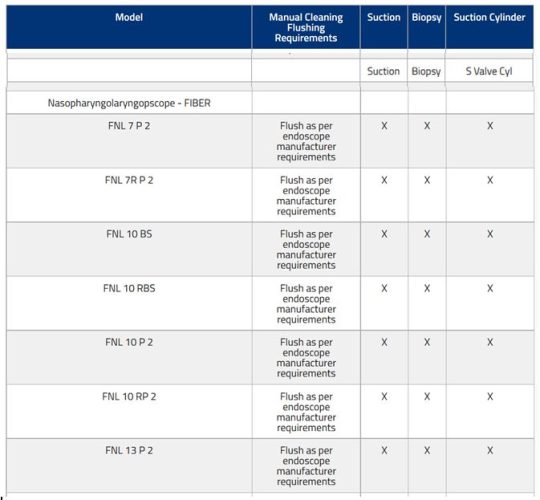

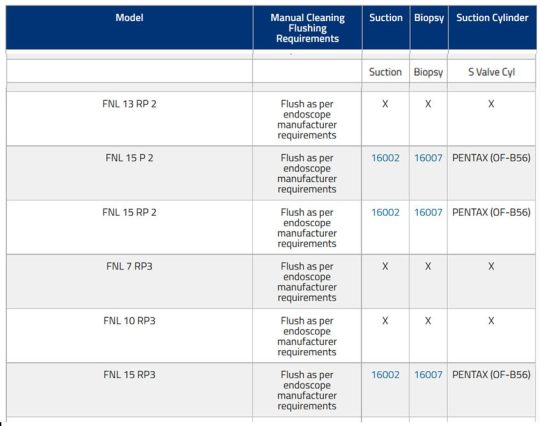

Pentax Nasopharyngolaryngopscope – FIBER – Intubation Chloe & ENT

CAUTION: SCOPES BELOW ARE FOR USE ONLY IN 83-S8 AND 83-S6 PRE-PROCESSING SINK (NOT LABELED FOR USE IN A SYSTEM 83 PLUS DEVICE)

16002= blunt end tube; CU # 17017 = tube with male luer connector
Pentax Plugs: OF-B155 white rubber cap for VNL-70, OF-B75 metal cap for VNL-30 and OF-B103 metal cap for FI/FCP/FNL-BS/P

Suction = tapered metal suction connector that accepts tube from suction unit; Biopsy = biopsy port/instrument channel inlet
S Valve Cyl = Suction valve cylinder requires Pentax adapter cap to seal cylinder
Irrigation (for FCP scopes) = irrigation connector (female luer); Irrigation valve cylinder requires Pentax adapter cap
Models with no channels require no channel flushing adapters

X = not applicable * = dual channel scope ( ) = adapters available from scope OEM
