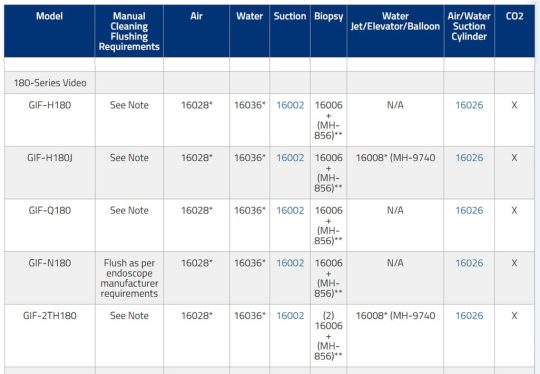

Olympus – 180 Series Video – Gastroscope

16008 + 16028 + 16036: Includes the in-line-disc filter (P/N 16030) that must be replaced as required or every six (6) weeks.
16006 + MH 856: Requires a stainless steel clip (P/N 16015) that secures the Olympus Biopsy Channel Adapter (P/N 16006) to the biopsy port on the endoscope

MH 856: Olympus OEM Suction Cleaning Adapter
MH 974: Olympus OEM Washing Tube
(2): Dual Biopsy Channel

Caution: Remove all valves, air/water, suction, co2, biopsy caps and selector mechanisms, etc. Consult the appropriate endoscope manual for the proper removal and cleaning procedures of components. Install appropriate reprocessing parts supplied by endoscope manufacturer and/or Wassenburg Medical. To confirm proper channel adaptation refer to endoscope diagrams and instrument adapter list document. For questions regarding endoscope channel adaptation, contact Wassenburg Medical.

Note: Follow through and complete endoscope manufacture’s manual cleaning instructions except for final flushing of channels with rinse water but only when using the System 83 Plus Washer/Disinfector

X: Not Applicable
